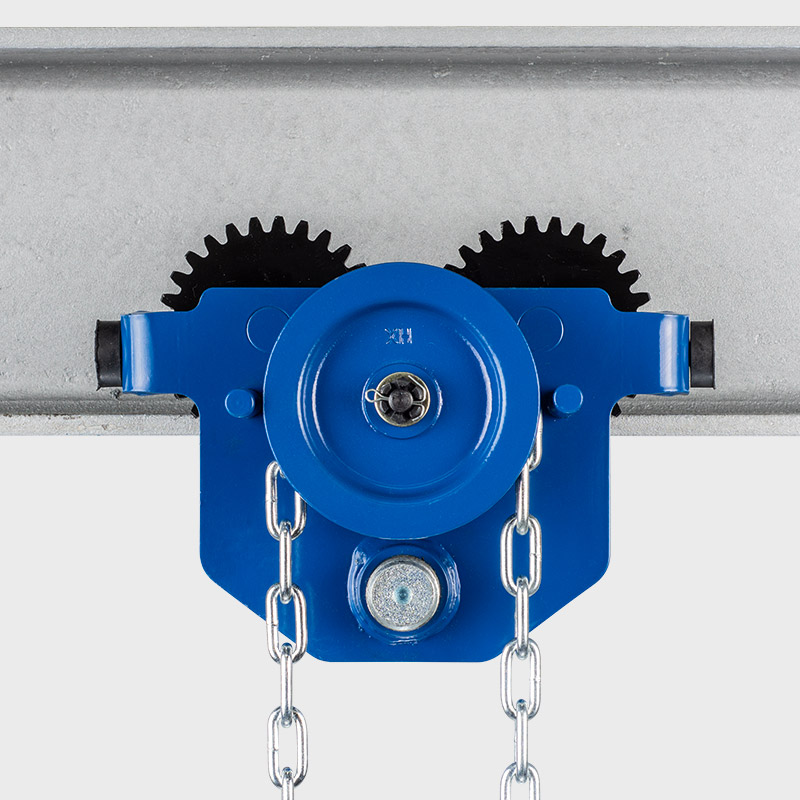

GTS reel trolley

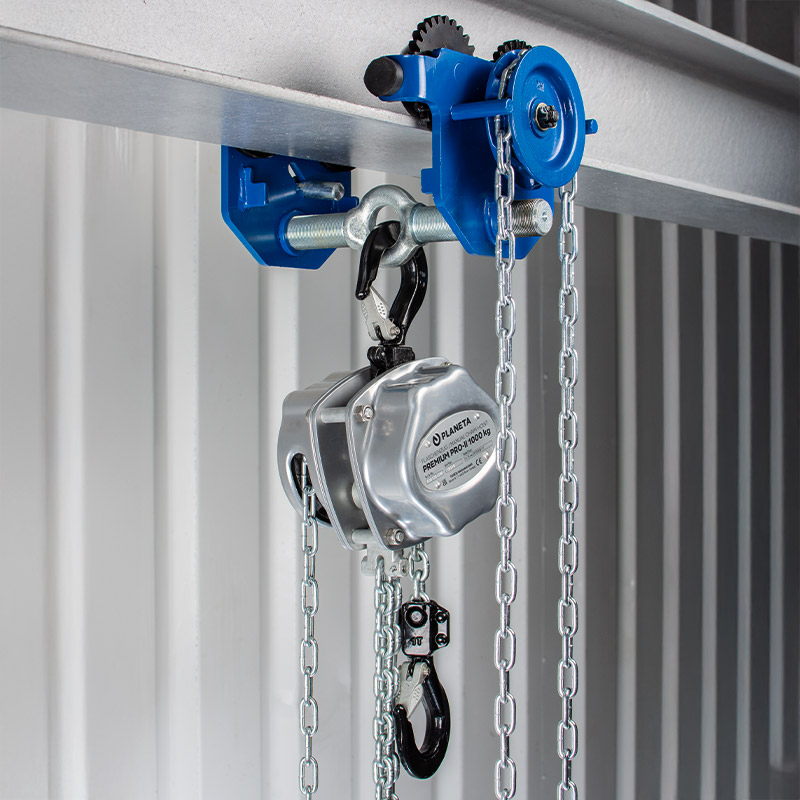

The trolleys are manufactured to a high quality and are designed for tough and durable operation. The PREMIUM PRO and PULLMASTER-II manual chain hoists of the same capacity can be easily attached and detached using the lifting hook. The trolleys have rubber buffers on both sides! Can be used in ambient temperatures from -20 °C to +60 °C.
Large adjustment range

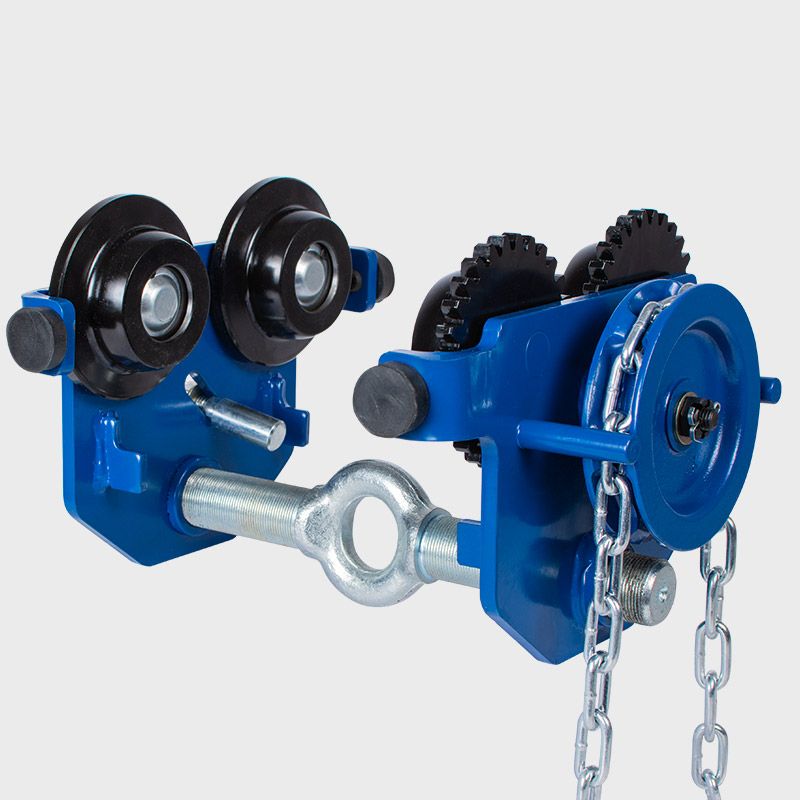

The trolley can be adjusted to many beam widths by turning the threaded spindle. The profiled rollers are suitable for all common beam profiles, making this trolley very flexible to use. The standard flange width is up to 220 mm, but is reduced to 203 mm if the optional lock nuts are used to prevent the threaded spindle from turning. Once the trolley has been set to the appropriate flange width and a hoist has been attached, the spindle can no longer twist.
Downloads
Specifications
- Capacities from 500 kg to 5,000 kg
- For pulling or moving the load
- The trolleys are manufactured to a high quality and are designed for tough and durable operation
- The trolley can be adjusted to many beam widths by turning the threaded spindle
- Easy to install because it slides onto the open beam
- The profiled castors are suitable for all standard support profiles, so that this trolley can be used very flexibly
- The standard flange width goes up to 220 mm

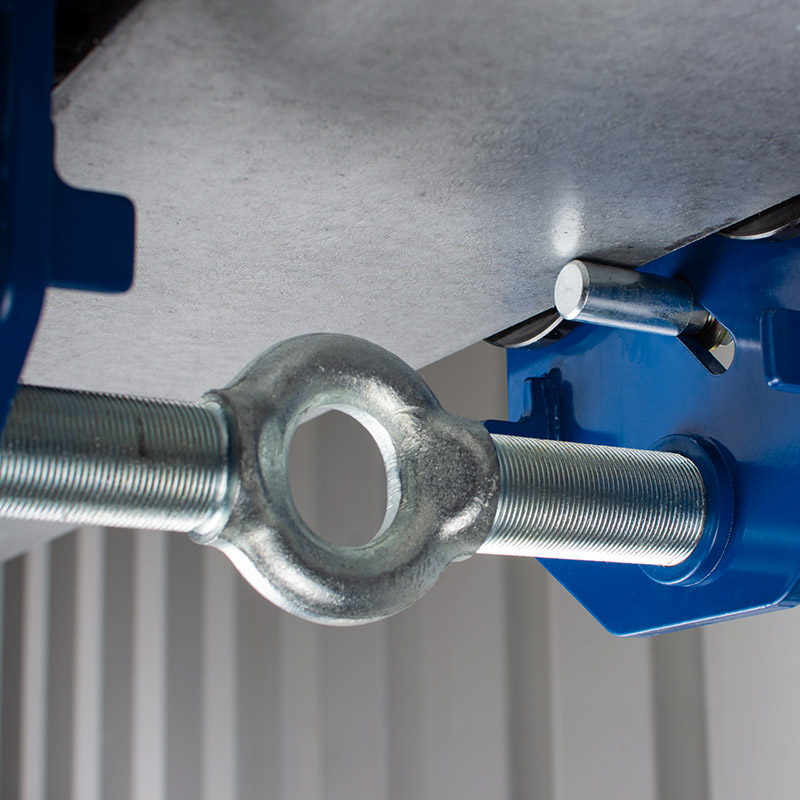

- Sturdy side plates with safety lugs as wheel break support
- The trolleys have rubber buffers on both sides
- Can be used in ambient temperatures from -20 °C to +60 °C
