Electric wire rope hoist PWRH
The PLANETA PWRH electric wire rope hoist stands for maximum performance in the case of minimum space requirements. Developed for professional use in industry, logistics, trade and construction, this electric wire rope hoist is impressive because of its compact design, low weight and high cost-effectiveness.
Thanks to the optimized rope drum technology, the electric wire rope hoist enables precise rope guidance in the case of low wear and a long service life. The motor, gearbox and control unit are combined in a highly integrated, robust unit – ideal for applications in confined installation situations.
The high-strength lightweight construction made of die-cast aluminum and special steel ensures a minimum dead weight in the case of high capacities. This enables ergonomic operation as well as safe and stable lifting of heavy loads.
The PLANETA PWRH electric wire rope hoist also impresses economically: energy-efficient high-performance motors reduce power consumption, while durable components and a low-maintenance design minimize operating costs and downtimes. Because of its modular design, the electric wire rope hoist can be flexibly adapted to different load capacities and requirements.
The PLANETA PWRH electric wire rope hoist is the ideal solution for anyone looking for powerful, compact and future-proof lifting technology.
Specifications
- Capacity PWRH monorail trolley with short headroom: 1,000 – 20,000 kg
- Capacity PWRH monorail trolley normal headroom: 1,000 – 50,000 kg (larger on request)

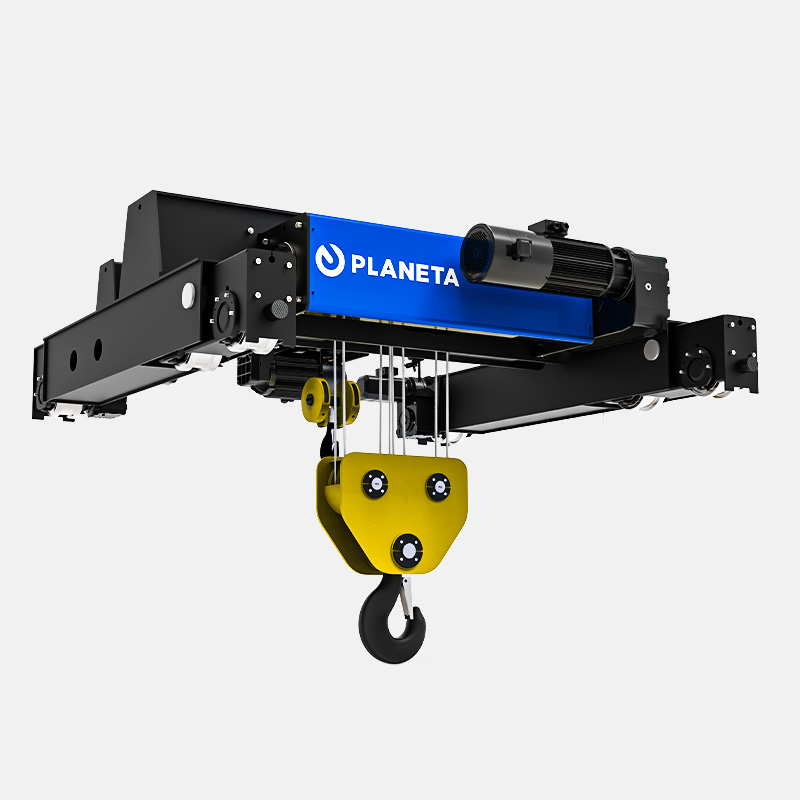

- Capacity PWRH double rail trolley: 1,000 – 80,000 kg (larger on request)
- Lifting speeds from 0.4 – 10 m/min, single-stage, two-stage, frequency-controlled
- 2 or 8 rope strands, reeving 2/1, 4/1, 4/2, 6/1, 6/2 and 8/2
- Two-stage pole-changing hoist motor with bimetal sensor
- DC disc brake, maintenance-free, 4-stage gear limit switches with pre-shutdown and hoist protection in the case of phase reversal
- Electromechanical overload protection
- Travel motor with variable speed: 5 to 20 m/min (lifting equipment with trolley)
- Standard-Stromversorgung: 380V/400V/415V/50Hz, 440V/460V/60Hz
- Control voltage 48V (without main contactor and fuses/option in crane package)
- Motor protection IP55 / insulation class F
- Without control unit (option in crane package)
- Load hook with hook safety catch
- Rubber buffer for the electric undercarriage
- Fall protection
- Robust cable guide
- Hoist design according to FEM/ISO
- Test certificate, hook certificate, rope certificate, operating and maintenance instructions, overview drawing
Options
- Non-standard power supply
- Crane package (crane control)
- Intelligent monitoring module, load spectrum memory
- Lift motor for variable speed
- Class H motor
- Motor protection class IP66
- Outdoor application
- Heating for motor/lifting equipment control cabinet
- Stainless steel control cabinet
- Forced cooling fan, auxiliary fan
- Radio remote control
- Synchronization
- Load measurement
- Load display
- Load totalization
- Hoists as “True Vertical” version
- Anti Sway (pendulum damping)
- Stainless steel wire rope
- Crane package (crane control, trailing cable systems, endcarriages, including trolleys)
